Simple Groovy Part 3 – FlexibleDataGridDefinitionBuilder

Arguably the most important topic

FlexibleDataGridDefinitionBuilder is the new DataGridDefinitionBuilder. It provides a more flexible and intuitive way to define data grids and removes some of the rigid and sometimes tricky syntax required by the traditional DataGridDefinitionBuilder.

Imagine we have a form where users enter trend assumptions by expense account, and we want to collect and print those assumptions.

Let’s take a look at the code.

When you think about building an ad hoc Smart View grid in Excel, what is the first thing you do?
You right-click on a cube and create an ad hoc sheet.

It’s the same idea when coding with Groovy – you first need to define the cube. In addition to the cube, let’s define a Map variable to collect the data.

Cube cube = operation.application.getCube("Plan1")
def methodByAcct = [:] as Map<String,String>

Once you have defined the cube, you need to define the grid, including the POV, columns, and rows.

//define the grid builder
def srcBuilder = cube.flexibleDataGridDefinitionBuilder()
//Set POV
srcBuilder.setPovDimensions('Scenario','Version','Entity','Years','Period')
srcBuilder.setPov('Plan','Working','No Entity','FY26','BegBalance')
//Set Columns
srcBuilder.setColumnDimensions('Plan Element')
srcBuilder.addColumn('Trend Method')
//Set Rows
srcBuilder.setRowDimensions('Account')
srcBuilder.addRow('Ilvl0Descendants("Expense Accounts")')

After we have defined the grid, we can start collecting the data.

//Load grid
cube.loadGrid(srcBuilder.build(), false).withCloseable { grid ->
    //Iterate through the grid
    grid.dataCellIterator().each { cell ->
        //Ignore missing and collect the data
        if (cell.missing) return
        methodByAcct[cell.getMemberName('Account')] = cell.formattedValue
    }
}

Notice that I used cell.formattedValue? This is the best way to capture a text value. Use getData() to collect double.

Lastly, print the results.

println "Methods found : ${methodByAcct}"

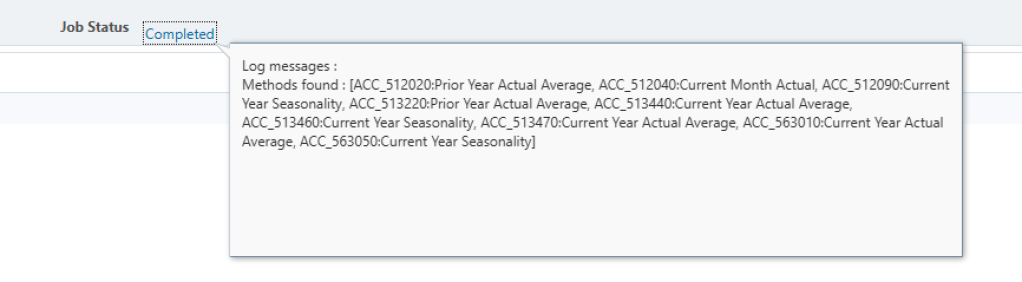

Result in the job console.

Two other commands to consider: use suppression as needed to help control the data returned in your grid.

srcBuilder.setSuppressMissingBlocks(true)
srcBuilder.setSuppressMissingRows(true)

Here is the full script:

Cube cube = operation.application.getCube("Plan1")
def methodByAcct = [:] as Map<String,String>
//define the grid builder
def srcBuilder = cube.flexibleDataGridDefinitionBuilder()
//Set suppression
srcBuilder.setSuppressMissingBlocks(true)
srcBuilder.setSuppressMissingRows(true)
//Set POV
srcBuilder.setPovDimensions('Scenario','Version','Entity','Years','Period')
srcBuilder.setPov('Plan','Working','No Entity','FY26','BegBalance')
//Set Columns
srcBuilder.setColumnDimensions('Plan Element')
srcBuilder.addColumn('Trend Method')
//Set Rows
srcBuilder.setRowDimensions('Account')
srcBuilder.addRow('Ilvl0Descendants("Expense Accounts")')
//Load grid
cube.loadGrid(srcBuilder.build(), false).withCloseable { grid ->
    //Iterate through the grid
    grid.dataCellIterator().each { cell ->
        //Ignore missing and collect the data
        if (cell.missing) return
        methodByAcct[cell.getMemberName('Account')] = cell.formattedValue
    }
}
println "Methods found : ${methodByAcct}"
